Silicon Nitride Pouring Spoon and Crucible with Ultimate Thermal Shock Resistance and Superior Non-Stick Aluminum Properties for the Aluminum Industry

Name: Silicon Nitride Pouring Spoon and Crucible with Ultimate Thermal Shock Resistance and Superior NonStick Aluminum Properties for the Aluminum Industry
Brand: KEGU
Price: 200 USD

Cheap Silicon Nitride Pouring Spoon and Crucible with Ultimate Thermal Shock Resistance and Superior Non-Stick Aluminum Properties for the Aluminum Industry for sale

Brand Name : KEGU

Place of Origin : China

Price : 200-500 yuan/kg

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 2,000 pcs/month

Packaging Details : Strong wooden box for Global shipping

Model Number : Customizable

Material : Silicon Nitride

Composition:SiC : ＞85%

Color : Black

Density : 3.20-3.26g/cm3

Max. Service Temp : 1450℃

Flexural Strength : 250MPa

Sample : Customizable

Chemical Stability : High

Apparent Porosity : 0-0.1%

Elastic Modulus : 300-320GPa

Compression Strength : >1500MPa

Vickers Hardness(HV0.5) : 15-16GPa

Thermal Conductivity : 20-25W/(m.k)

Specific Resistivity : 10^14Ω·cm

Contact Now

Product Description

Our high-performance silicon nitride ceramic materials are engineered specifically for the aluminum industry, delivering superior thermal and mechanical properties compared to traditional alternatives. This innovation enables groundbreaking products like the L-shaped high thermal conductivity submerged heating appliance, setting a new standard for efficiency and durability in aluminum processing equipment.

Domestically Pioneered: Slip-Cast Silicon Nitride Pouring Spoons & Crucibles

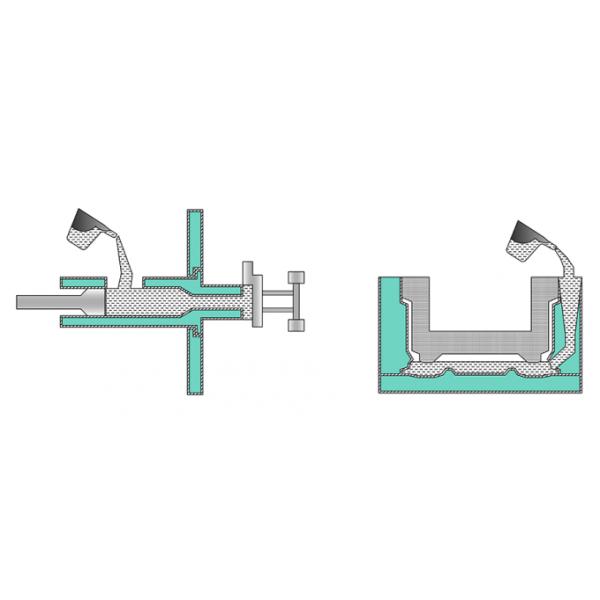

We utilize a pioneering slip-casting formation process to manufacture silicon nitride pouring spoons and crucibles. This method maximizes the inherent advantages of silicon nitride, offering:

Ultimate Thermal Shock Resistance (ΔT 400–500°C)
Superior Non-Stick Aluminum Properties
Excellent Corrosion & Wear Resistance

These products represent the definitive solution for aluminum melt handling, significantly extending service life compared to spoons and crucibles made from other ceramic materials.

Silicon Nitride Pouring Spoon and Crucible with Ultimate Thermal Shock Resistance and Superior Non-Stick Aluminum Properties for the Aluminum Industry

Silicon Nitride Ceramics: Technical Property Comparison

Category	Property	Unit	99% Al₂O₃	S-SiC	ZrO₂	Si₃N₄
Physical	Density	g/cm³	3.9	3.1	6.0	3.2
	Water Absorption	%	0	0.1	0	0.1
	Sintering Temperature	°C	1700	2200	1500	1800
Mechanical	Hardness (HV)	HV	1700	2200	1300	1400
	Flexural Strength	MPa (kgf/mm²)	~343 (3500)	~392 (4000)	~882 (9000)	~686 (7000)
	Compressive Strength	MPa (kgf/mm²)	~2942 (30000)	~1961 (20000)	~1961 (20000)	~2255 (23000)
Thermal	Max Working Temperature	°C	1500	1600	1300	1400
	Thermal Expansion Coefficient (0-1000°C)	10⁻⁶/°C	8.0	4.1 (0-500°C)	9.5	2.0 (0-500°C)
				5.2 (500-1000°C)		4.0 (500-1000°C)
	Thermal Shock Resistance	ΔT (°C)	200	250	300	400-500
	Thermal Conductivity (25°C)	W/m·K	31	100	3	25
	Thermal Conductivity (300°C)	W/m·K	16	100	3	25
Electrical	Volume Resistivity (20°C)	Ω·cm	>10¹²	10⁶–10⁸	>10¹⁰	>10¹¹
	Volume Resistivity (100°C)	Ω·cm	10¹²–10¹³	–	–	>10¹¹
	Volume Resistivity (300°C)	Ω·cm	>10¹²	–	–	>10¹¹
	Dielectric Strength	kV/mm	18	Semiconductor	9	17.7
	Dielectric Constant (1 MHz)	ε	10	–	29	7
	Dielectric Loss Tangent	tan δ	0.4 × 10⁻³	–	–	–

Why Choose Our Silicon Nitride Pouring Spoons & Crucibles?

Longer Service Life: Exceptional durability reduces replacement frequency and downtime.
Improved Efficiency: Excellent non-wetting properties minimize aluminum adhesion and material loss.
Enhanced Reliability: Unmatched thermal shock resistance prevents cracking during rapid temperature changes.
High-Temperature Stability: Maintains structural integrity in demanding aluminum processing environments.

Silicon Nitride Pouring Spoon and Crucible with Ultimate Thermal Shock Resistance and Superior Non-Stick Aluminum Properties for the Aluminum Industry
